Sovelia Vault Property Compliance versus Autodesk Vault Peer Review

As a product data management tool, Autodesk Vault provides the ability to manage, track, and organise design and engineering data throughout its lifecycle. It includes features for document management, version control, and collaboration.

Sovelia Vault Property Compliance versus Autodesk Vault Peer Review

Vault 2024 Professional has added new capabilities for Peer Review. Peer review refers to the process of having colleagues or team members review and provide feedback on design files or documents stored within the Vault. It is a collaborative quality control measure where individuals within the organization can examine, evaluate, and comment on the content before it moves forward in the workflow or is released for production.

Sovelia Vault, specifically designed as an automation platform for Autodesk Vault, offers additional features and functionality that enhance the capabilities of Autodesk Vault. These enhancements provide greater flexibility, control, and customization options for peer review and property compliance, including the implementation of a true "4-eye check." This ensures that a document or design file undergoes review by at least two individuals before proceeding to the next stage or being released.

So, what are the differences between Vault and Sovelia Vault and why would you want to use Sovelia Vault instead? The table below compares functionality:

Functionality

Autodesk Vault

Sovelia Vault

When applied

On lifecycle transition prior to any other actions

Configurable when in order of actions transaction check applied

Where applied

Client Only

Client or job processor

Rules for files applied to

Defined per transition state individually

Defined in action which can be applied to multiple different transition states in action sets.

Rule Change

Must be applied to every transaction where rule is applied

Single change in action

Properties compared

User attempting state change with Version Created By User

ANY  property with current user, computed values, any vault properties or fixed text.

These are the differences in functionality between Autodesk Vault and Sovelia Vault. While Autodesk Vault focuses on individual transition states and requires changes to be applied to every transaction, Sovelia Vault provides more flexibility with actions, allowing rules to be applied to multiple states in action sets with a single change. Moreover, Sovelia Vault offers greater flexibility in comparing properties, enabling comparisons with various values and properties beyond just the version's created-by user.

The standard Vault peer review has limitations, as it can be influenced by actions performed by the job processor, which may update the file version. For example, if a revision block update or state change is applied to the title block, the last user shown in the review may be the job processor user instead of the user who initiated the state change.

Additionally, achieving a true "4-eye check" in a multi-review process is not feasible with the standard Vault peer review functionality. While a user may be restricted from performing the initial check state change, they may not be prevented from performing subsequent approval state changes.

In summary, Sovelia Vault expands upon the core features of Autodesk Vault and offers advanced automation, customization, and flexibility for property compliance and peer review.

If you require extensive customization, automation, and additional capabilities, choosing Sovelia Vault alongside Autodesk Vault can provide significant benefits.

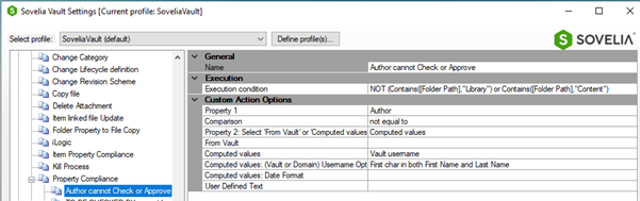

Property compliance is just one of many automation tools available within Sovelia Vault.

To find more information about Sovelia Vault, you can visit the official website https://sovelia.com/sovelia-products/sovelia-vault. There, you'll be able to explore detailed information about Sovelia Vault and access additional resources to learn more about its features and functionality.
